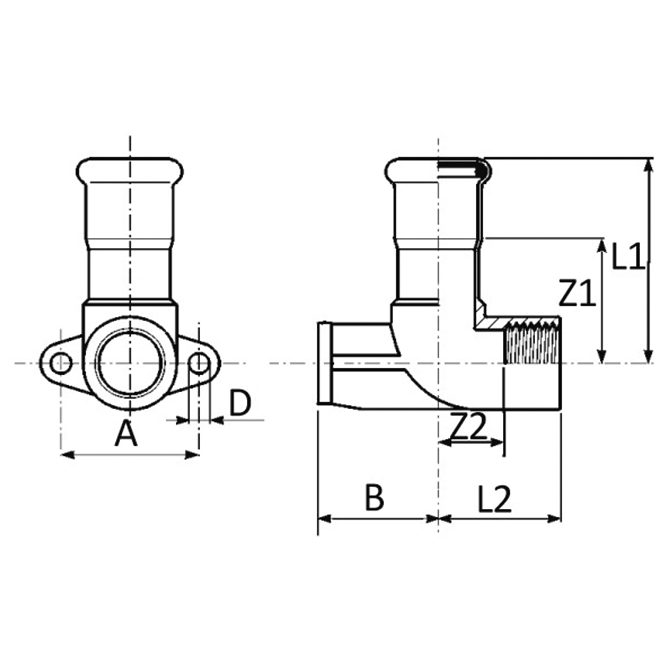

| Specifications | |
|---|---|
| De x Rp | 18mm x 1/2” |
| L1 | 51mm |
| L2 | 30mm |
| Z1 | 31mm |
| Z2 | 17mm |
| A | 34mm |
| B | 35mm |
| D | 5mm |
| Weight | 142 g |
| Material | AISI 316L - 1.4404 |
| O-Ring | EPDM (Black) |
| Thread | EN 10226-1 (ex ISO 7/1) |
| Available Type Approvals | DNV-GL, LRS |
