| Specifications | |
|---|---|

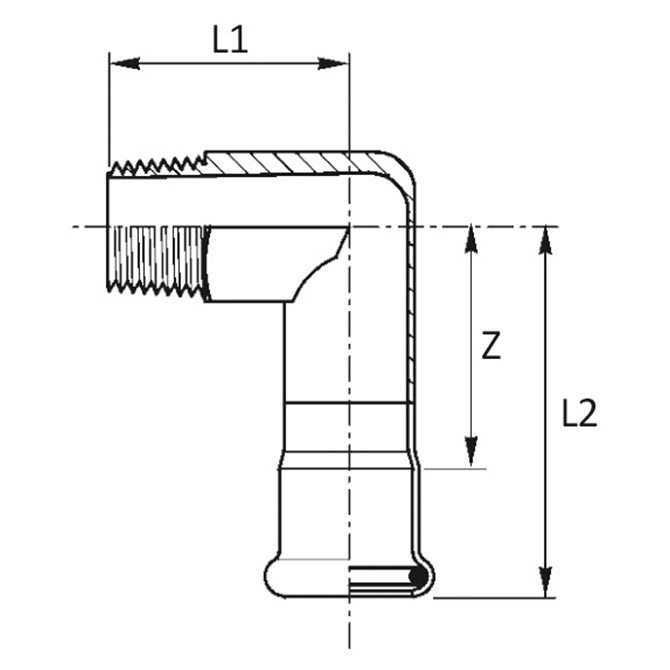

| De x R | 18mm x 1/2” |
| L1 | 37mm |
| L2 | 57mm |
| Z | 38mm |
| Weight | 105 g |
| Material | AISI 316L – 1.4404 |
| O-Ring | EPDM (Black) |
| Thread | EN 10226-1 (ex ISO 7/1) |
| Available Type Approvals | DNV-GL, LRS |
