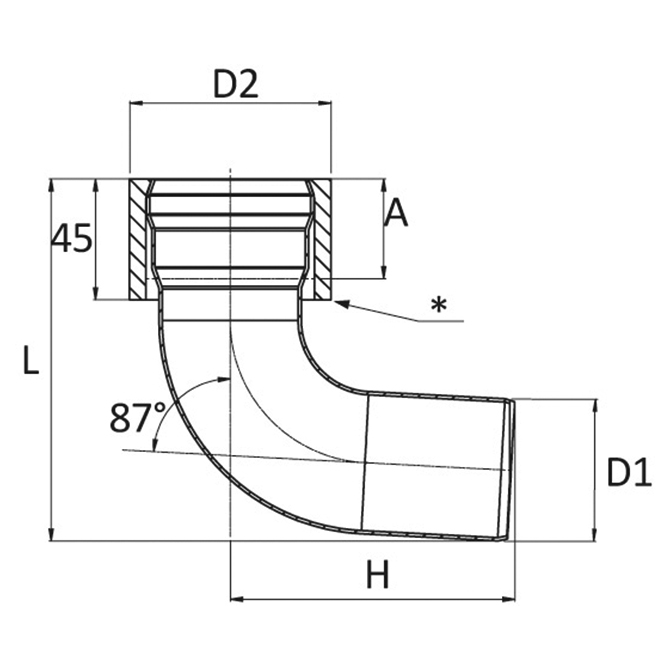

| Specifications | |
|---|---|
| Size | DN80 |
| D1 | 88.9mm |
| L | 201mm |
| D2 | 113.5mm |
| H | 162mm |
| A | 60mm |
| Weight | 1.485 kg |
| Material | AISI 316L – 1.4404 |
| Gasket Material | EPDM cod. 826/GV (Ø 40 - 65) / EPDM cod. 826/G (Ø 80 - 100) |
| Standard | EN 1124-3 |
| Available Type Approvals | DNV-GL, LRS |
