| Specifications | |
|---|---|

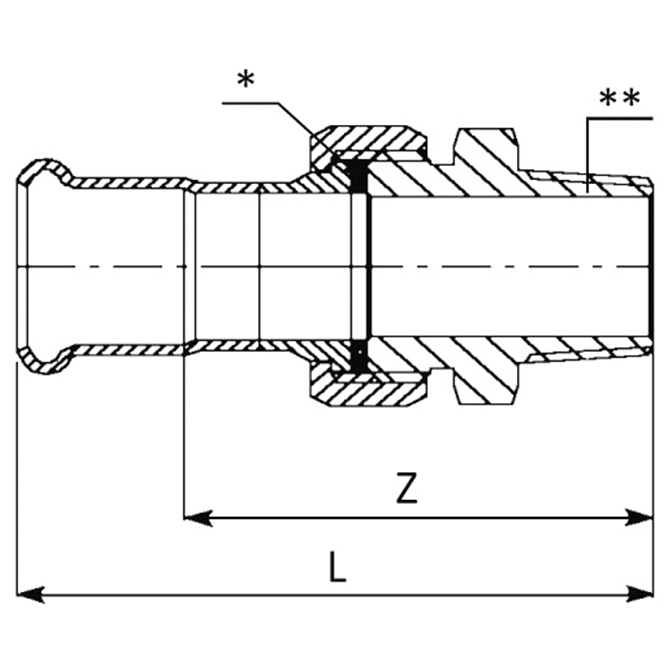

| De x R | 54mm x 2” |
| L | 111mm |
| Z | 77mm |
| Gasket | 56mm x 42mm thk 2.5mm |
| Weight | 842 g |
| Material | AISI 316L - 1.4404 |
| Threaded-End Material | AISI 316L - 1.4404 |
| O-Ring | EPDM (Black) |
| Gasket Material | EPDM (Black) |
| Thread | EN 10226-1 (ex ISO 7/1) |
| Available Type Approvals | DNV-GL, LRS |
