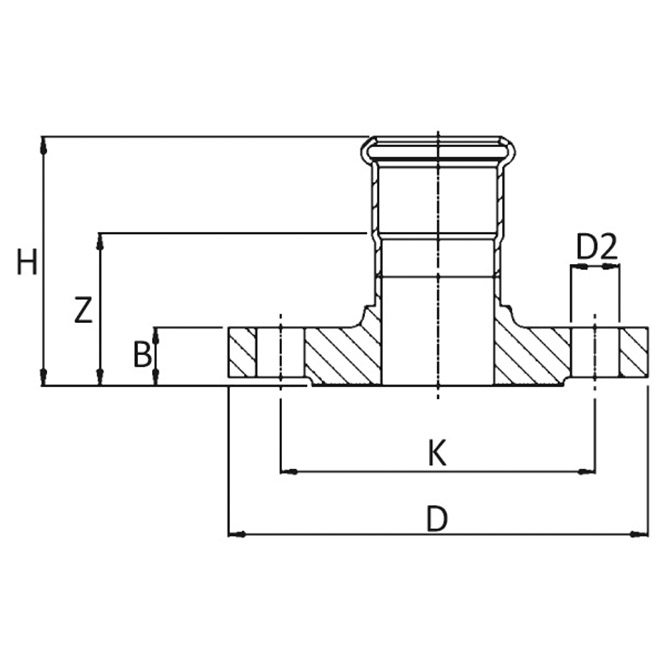

| Specifications | |
|---|---|
| Drilling/Pressure | PN6 |
| De | 76.1mm |
| Size | DN65 |
| H | 101mm |
| Z | 45.5mm |
| B | 14mm |
| D | 160mm |
| D2 | 14mm |
| No. of Bolt Holes | 4 |
| K | 130mm |
| Weight | 1870 g |
| Material | AISI 316L - 1.4404 |
| O-Ring | EPDM (Black) |
| Available Type Approvals | DNV-GL, LRS |
