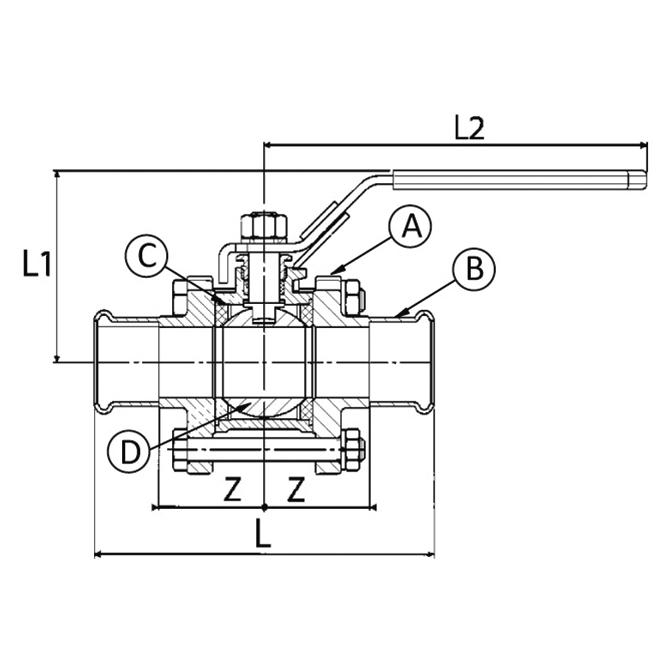

| Specifications | |
|---|---|
| De | 28mm |
| DN | 25 |
| DN (inch) | 1” |
| L | 167mm |
| Z | 60.5mm |
| L1 | 89mm |
| L2 | 175mm |
| Weight | 1476 g |
| Material - A, B, D | AISI 316L – 1.4404 |
| Material - C | PTFE |
| O-Ring | EPDM (Black) |
| Available Type Approvals | DNV-GL, LRS |
