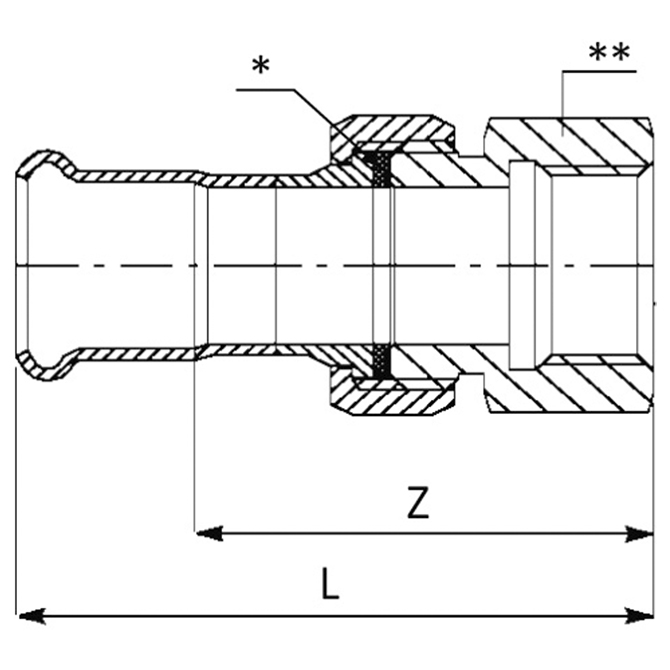

| Specifications | |
|---|---|
| De x Rp | 22mm x 3/4” |
| L | 76mm |
| Z | 54mm |
| Gasket | 30mm x 20mm thk 2.5mm |
| Weight | 213 g |
| Material | AISI 316L - 1.4404 |
| Threaded-End Material | Brass |
| O-Ring | EPDM (Black) |
| Gasket Material | EPDM (Black) |
| Thread | EN 10226-1 (ex ISO 7/1) |
| Available Type Approvals | DNV-GL, LRS |
