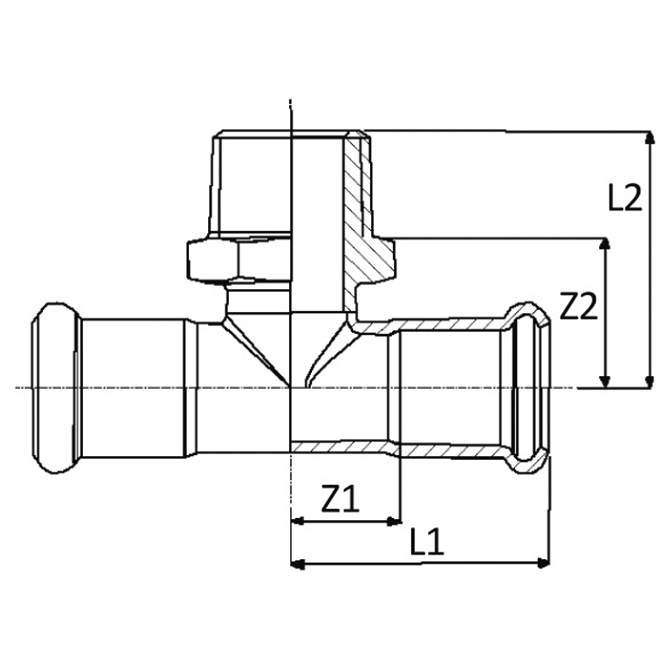

| Specifications | |
|---|---|
| De x R x De | 15mm x 1/2” x 15mm |
| L1 | 34.5mm |
| L2 | 34mm |
| Z1 | 14.5mm |
| Z2 | 20mm |
| Weight | 80 g |
| Material | AISI 316L – 1.4404 |
| O-Ring | EPDM (Black) |
| Thread | EN 10226-1 (ex ISO 7/1) |
| Available Type Approvals | DNV-GL, LRS |
