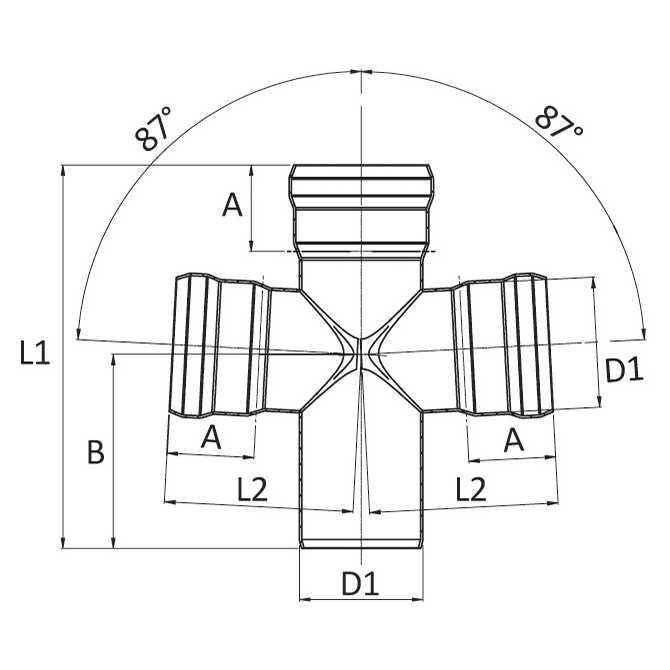

| Specifications | |
|---|---|
| Size | DN125 |
| D1 | 133mm |
| A | 75mm |
| L1 | 360mm |
| L2 | 159mm |
| B | 182mm |
| Weight | 2.616 kg |
| Material | AISI 316L – 1.4404 |
| Gasket Material | EPDM cod. 826/GV (Ø 50 - 65) / EPDM cod. 826/G (Ø 100 - 150) |
| Standard | EN 1124-3 |
| Available Type Approvals | DNV-GL, LRS |
