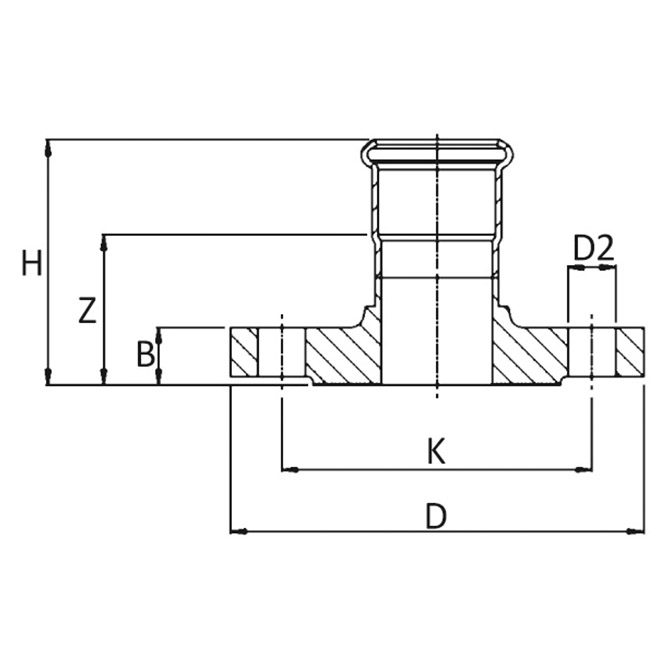

| Specifications | |
|---|---|
| Drilling/Pressure | 150# |
| De | 108mm |
| Size | DN100 |
| H | 132mm |
| Z | 57mm |
| B | 20mm |
| D | 220mm |
| D2 | 18mm |
| No. of Bolt Holes | 8 |
| K | 180mm |
| Weight | 4700 g |
| Material | AISI 316L - 1.4404 |
| O-Ring | EPDM (Black) |
| Available Type Approvals | DNV-GL, LRS |
