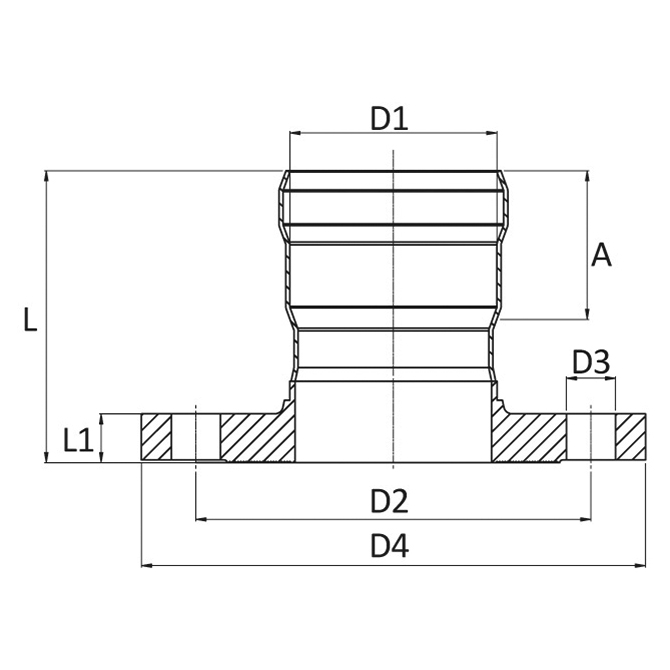

| Specifications | |
|---|---|
| Drilling/Pressure | PN6 |
| Size | DN40 |
| D1 | 42mm |
| A | 30mm |
| L | 67mm |
| L1 | 14mm |
| D2 | 100mm |
| D3 | 14mm |
| D4 | 130mm |
| No. of Holes | 4 |
| Weight | 1.304 kg |
| Material | AISI 316L – 1.4404 |
| Gasket Material | EPDM cod. 826/GV (Ø 40 - 65) / EPDM cod. 826/G (Ø 80 - 150) |
| Standard | EN 1124-3 |
| Available Type Approvals | DNV-GL, LRS |
