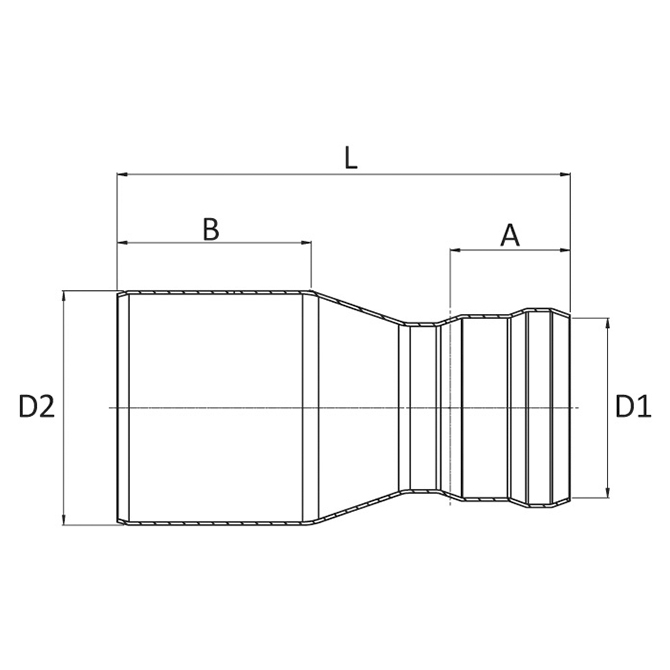

| Specifications | |
|---|---|
| DN1 | 65 |
| DN2 | 125 |
| D1 | 73mm |
| D2 | 133mm |
| A | 55mm |
| L | 200mm |
| B | 95mm |
| Weight | 0.818 kg |
| Material | AISI 316L – 1.4404 |
| Gasket Material | EPDM cod. 826/GV (Ø 40 - 65) / EPDM cod. 826/G (Ø 80 - 125) |
| Standard | EN 1124-3 |
| Available Type Approvals | DNV-GL, LRS |
