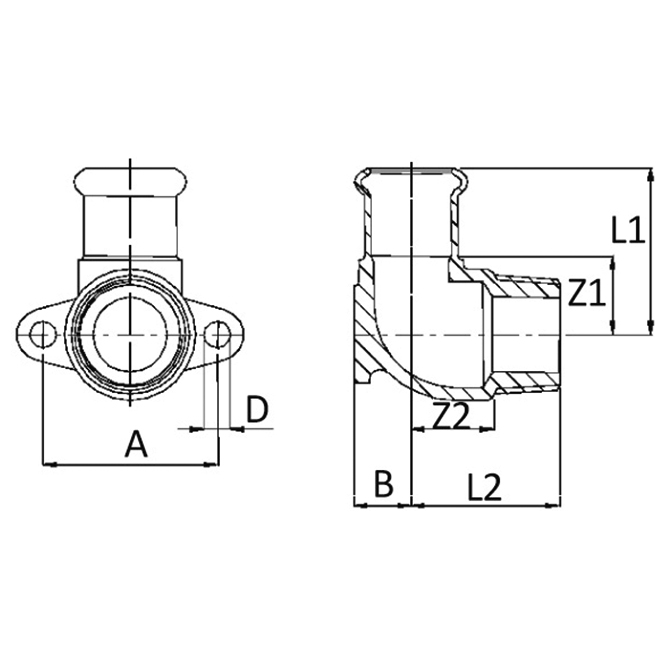

| Specifications | |
|---|---|
| De x R | 18mm x 3/4” |
| L1 | 38mm |
| L2 | 34mm |
| Z1 | 18mm |
| Z2 | 19mm |
| A | 40mm |
| B | 13mm |
| D | 6mm |
| Weight | 160 g |
| Material | AISI 316L - 1.4404 |
| O-Ring | EPDM (Black) |
| Thread | EN10226-1 (ex ISO 7/1) |
| Available Type Approvals | DNV-GL, LRS |
