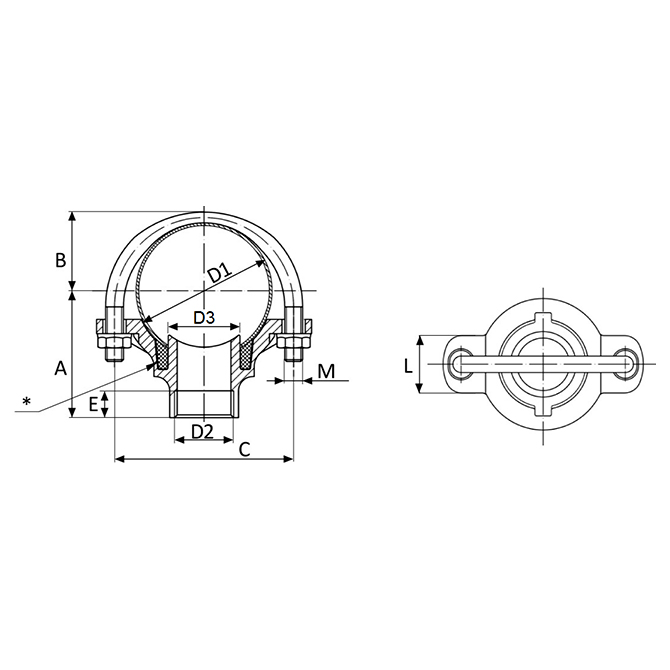

| Specifications | |
|---|---|
| D1 | 76.1mm |
| D2 | 1" |
| D3 | 42mm |
| A | 57.5mm |
| B | 44mm |
| C | 100mm |
| L | 35mm |
| E | 15mm |
| M | M10 x 35mm |
| Weight | 716 g |
| Material | AISI 316L - 1.4404 |
| O-Ring | EPDM (Black) |
| Gasket Material | EPDM |
| Thread | EN 10226-1 (ex ISO 7/1) |
| Available Type Approvals | DNV-GL, LRS |
